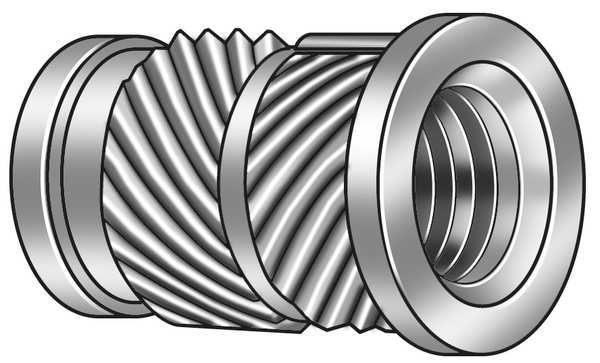

Ultrasonic Insert, 3/8"-16, 1/2 in L, 0.551 in Insert Dia., 0.465 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, 3/8"-16, 1/2 in L, 0.551 in Insert Dia., 0.465 in Tapered End Dia., Brass

CONTRACTOR SELECT Heat-Set Inserts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 1/2 in
• Manufacturer Part Number: FL316-HI-PK500
• UPC: -

Product information

• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: FL316-HI-PK500
• UPC: -

Dimensions

• Thread Size: 3/8"-16
• Insert Diameter: 0.551 in
• Overall Length: 1/2 in
• Drill Bit Size: 15/32 in
• Minimum Material Thickness: 15/64 in
• Tapered End Diameter: 0.465 in
• Flange Diameter: 0.551 in
• Maximum Hole Diameter: 0.469 in

Details

• Insert Type: Heat-Set Insert
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Straight
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flanged
• System of Measurement: Inch
• Thread Direction: Right Hand
• Features: Pull-Out Resistance
• Finish: Plain
• Series: E-Z Sonic

This Heat-Set Inserts is chosen for predictable fit and professional handling.

Recommended for planned maintenance programs and designed to support reliable operation in demanding environments.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
