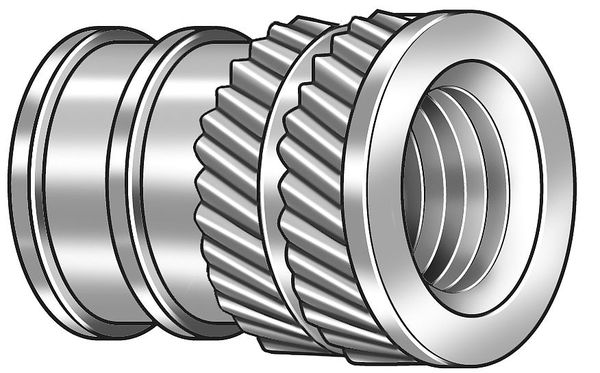

Ultrasonic Insert, 3/8"-16, 5/8 in L, 0.563 in Insert Dia., 0.493 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, 3/8"-16, 5/8 in L, 0.563 in Insert Dia., 0.493 in Tapered End Dia., Brass

This Heat-Set Inserts from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 5/8 in
• Manufacturer Part Number: DV-316-TH-PK500
• UPC: -

Product information

• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: DV-316-TH-PK500
• UPC: -

Dimensions

• Thread Size: 3/8"-16
• Insert Diameter: 0.563 in
• Overall Length: 5/8 in
• Minimum Material Thickness: 19/64 in
• Drill Bit Size: 0.488 in
• Tapered End Diameter: 0.493 in
• Maximum Hole Diameter: 0.54 in

Details

• Number of Vanes: 2
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Features: Pull-Out Resistance
• Series: E-Z Sonic
• Finish: Plain
• Insert Type: Heat-Set Insert
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered

This Heat-Set Inserts is well-suited for replacement, upgrade, and stock-room use.

Recommended for production support and bench work and a practical option for maintenance teams and procurement.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
