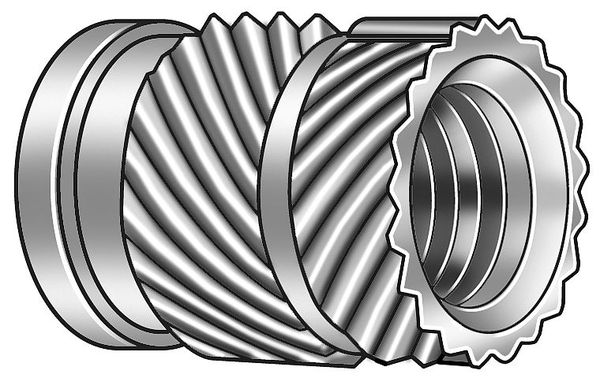

Ultrasonic Insert, 3/8"-24, 1/2 in L, 0.494 in Insert Dia., 0.465 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, 3/8"-24, 1/2 in L, 0.494 in Insert Dia., 0.465 in Tapered End Dia., Brass

This Heat-Set Inserts from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 1/2 in
• Manufacturer Part Number: HI-324-WH-PK500
• UPC: -

Product information

• Manufacturer Part Number: HI-324-WH-PK500
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Minimum Material Thickness: 15/64 in
• Drill Bit Size: 15/32 in
• Tapered End Diameter: 0.465 in
• Maximum Hole Diameter: 0.469 in
• Thread Size: 3/8"-24
• Insert Diameter: 0.494 in
• Overall Length: 1/2 in

Details

• System of Measurement: Inch
• Thread Direction: Right Hand
• Finish: Plain
• Features: Pull-Out Resistance
• Insert Type: Heat-Set Insert
• Series: E-Z Sonic
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Straight
• Thread Type: UNF
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush

This Heat-Set Inserts is designed to support reliable operation in demanding environments.

Recommended for maintenance and repair workflows and a practical option for maintenance teams and procurement.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
