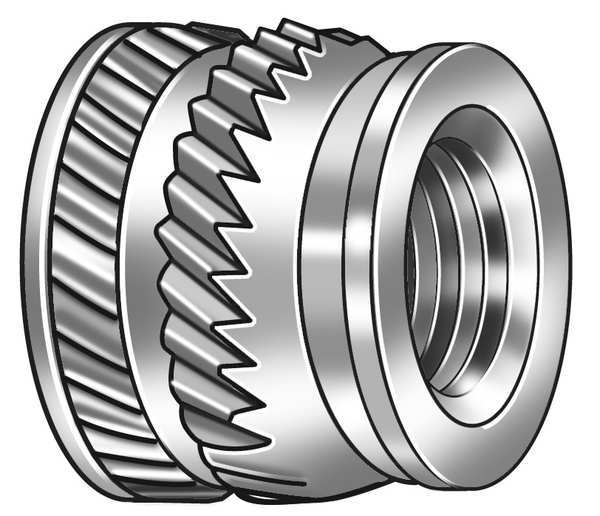

Ultrasonic Insert, 3/8"-24, 3/8 in L, 0.563 in Insert Dia., 0.53 in Tapered End Dia., Brass, 500 PK

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, 3/8"-24, 3/8 in L, 0.563 in Insert Dia., 0.53 in Tapered End Dia., Brass, 500 PK

A practical Heat-Set Inserts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 3/8 in
• Manufacturer Part Number: TH-324-SV-PK500
• UPC: -

Product information

• UPC: -
• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: TH-324-SV-PK500

Dimensions

• Maximum Hole Diameter: 0.363 in
• Thread Size: 3/8"-24
• Insert Diameter: 0.563 in
• Overall Length: 3/8 in
• Drill Bit Size: 0.523 in
• Minimum Material Thickness: 19/64 in
• Tapered End Diameter: 0.53 in

Details

• Series: E-Z Sonic
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Insert Type: Heat-Set Insert
• Finish: Plain
• Features: Pull-Out Resistance

This Heat-Set Inserts is chosen for predictable fit and professional handling.

Recommended for production support and bench work and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
