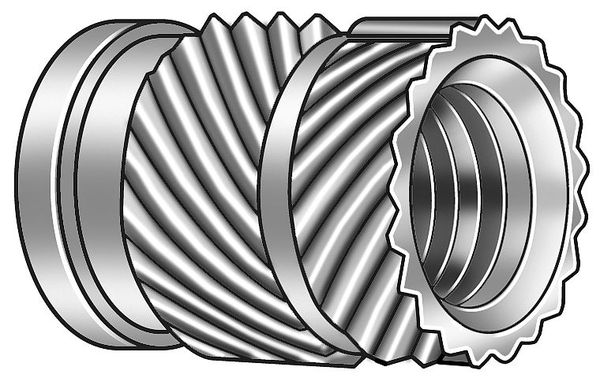

Ultrasonic Insert, #4-40, 15/64 in L, 0.181 in Insert Dia., 0.154 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #4-40, 15/64 in L, 0.181 in Insert Dia., 0.154 in Tapered End Dia., Brass

A practical Heat-Set Inserts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 15/64 in
• Manufacturer Part Number: HI-004-WH-PK1000
• UPC: -

Product information

• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: HI-004-WH-PK1000
• UPC: -

Dimensions

• Thread Size: #4-40
• Insert Diameter: 0.181 in
• Overall Length: 15/64 in
• Minimum Material Thickness: 1/16 in
• Drill Bit Size: #22
• Tapered End Diameter: 0.154 in
• Maximum Hole Diameter: 0.157 in

Details

• System of Measurement: Inch
• Thread Direction: Right Hand
• Finish: Plain
• Features: Pull-Out Resistance
• Insert Type: Heat-Set Insert
• Series: E-Z Sonic
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Straight
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush

This Heat-Set Inserts is selected for dependable day-to-day use.

Recommended for field service tasks and on-site replacement and a practical option for maintenance teams and procurement.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
