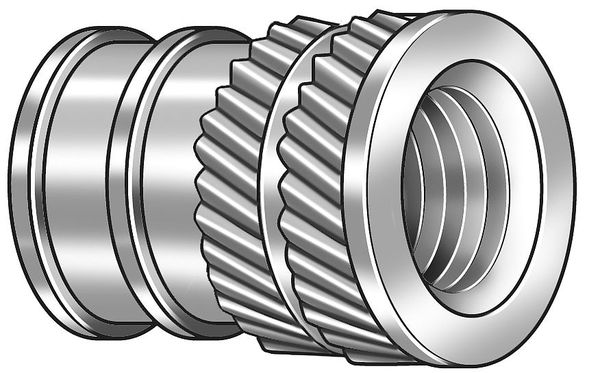

Ultrasonic Insert, #4-40, 7/32 in L, 0.172 in Insert Dia., 0.144 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #4-40, 7/32 in L, 0.172 in Insert Dia., 0.144 in Tapered End Dia., Brass

A practical Heat-Set Inserts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 7/32 in
• Manufacturer Part Number: DV-004-TH-PK1000
• UPC: -

Product information

• Manufacturer Part Number: DV-004-TH-PK1000
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Maximum Hole Diameter: 0.159 in
• Thread Size: #4-40
• Insert Diameter: 0.172 in
• Overall Length: 7/32 in
• Minimum Material Thickness: 3/32 in
• Drill Bit Size: 0.141 in
• Tapered End Diameter: 0.144 in

Details

• Shank Type: Tapered
• Number of Vanes: 2
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Features: Pull-Out Resistance
• Series: E-Z Sonic
• Insert Type: Heat-Set Insert
• Finish: Plain
• Item: Ultrasonic Insert
• Material: Brass

This Heat-Set Inserts is chosen for predictable fit and professional handling.

Recommended for planned maintenance programs and intended for professional buyers focused on durability and uptime.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
