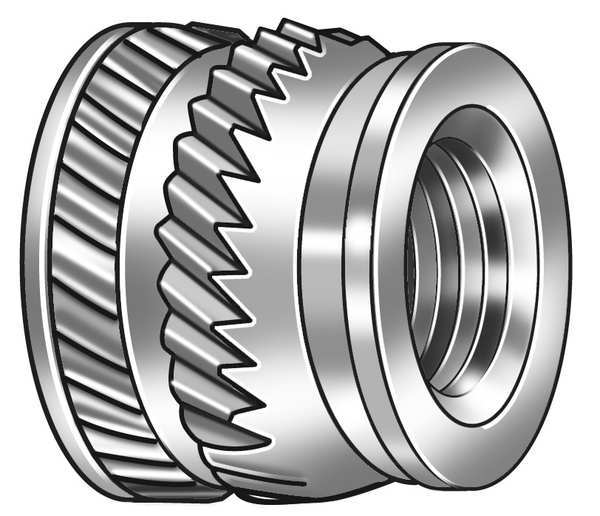

Ultrasonic Insert, #4-40, 9/64 in L, 0.172 in Insert Dia., 0.157 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #4-40, 9/64 in L, 0.172 in Insert Dia., 0.157 in Tapered End Dia., Brass

CONTRACTOR SELECT Heat-Set Inserts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 9/64 in
• Manufacturer Part Number: TH-004-SV-PK1000
• UPC: -

Product information

• Manufacturer Part Number: TH-004-SV-PK1000
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Maximum Hole Diameter: 0.159 in
• Thread Size: #4-40
• Insert Diameter: 0.172 in
• Overall Length: 9/64 in
• Minimum Material Thickness: 3/32 in
• Drill Bit Size: 0.153 in
• Tapered End Diameter: 0.157 in

Details

• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Series: E-Z Sonic
• Features: Pull-Out Resistance
• Finish: Plain
• Insert Type: Heat-Set Insert
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1
• Thread Type: UNC

This Heat-Set Inserts is a practical option for maintenance teams and procurement.

Recommended for planned maintenance programs and chosen for predictable fit and professional handling.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
