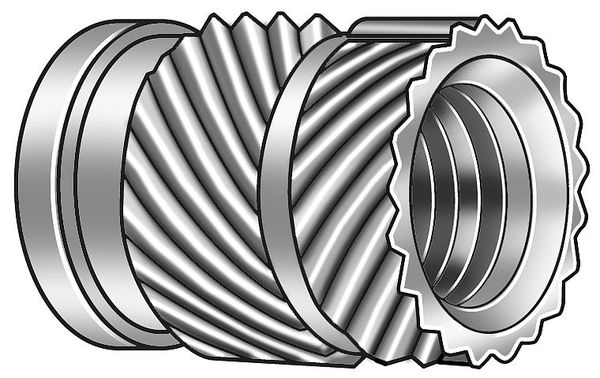

Ultrasonic Insert, 5/16"-24, 1/2 in L, 0.403 in Insert Dia., 0.374 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, 5/16"-24, 1/2 in L, 0.403 in Insert Dia., 0.374 in Tapered End Dia., Brass

This Heat-Set Inserts from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 1/2 in
• Manufacturer Part Number: HI-524-WH-PK500
• UPC: -

Product information

• Manufacturer Part Number: HI-524-WH-PK500
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Thread Size: 5/16"-24
• Insert Diameter: 0.403 in
• Overall Length: 1/2 in
• Drill Bit Size: 9.60 mm
• Minimum Material Thickness: 11/64 in
• Tapered End Diameter: 0.374 in
• Maximum Hole Diameter: 0.378 in

Details

• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Straight
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Features: Pull-Out Resistance
• Insert Type: Heat-Set Insert
• Finish: Plain
• Series: E-Z Sonic

This Heat-Set Inserts is chosen for predictable fit and professional handling.

Recommended for field service tasks and on-site replacement and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
