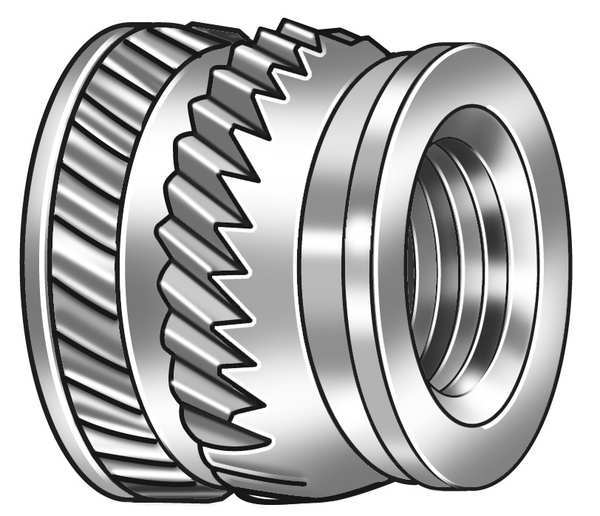

Ultrasonic Insert, #6-32, 5/32 in L, 0.206 in Insert Dia., 0.199 in Tapered End Dia., Brass, 100 PK

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #6-32, 5/32 in L, 0.206 in Insert Dia., 0.199 in Tapered End Dia., Brass, 100 PK

A practical Heat-Set Inserts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 5/32 in
• Manufacturer Part Number: TH-006-SV-PK100
• UPC: -

Product information

• UPC: -
• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: TH-006-SV-PK100

Dimensions

• Overall Length: 5/32 in
• Drill Bit Size: 0.199 in
• Minimum Material Thickness: 7/64 in
• Tapered End Diameter: 0.199 in
• Maximum Hole Diameter: 0.206 in
• Thread Size: #6-32
• Insert Diameter: 0.206 in

Details

• Features: Pull-Out Resistance
• Insert Type: Heat-Set Insert
• Finish: Plain
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Series: E-Z Sonic

This Heat-Set Inserts is well-suited for replacement, upgrade, and stock-room use.

Recommended for field service tasks and on-site replacement and a practical option for maintenance teams and procurement.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
