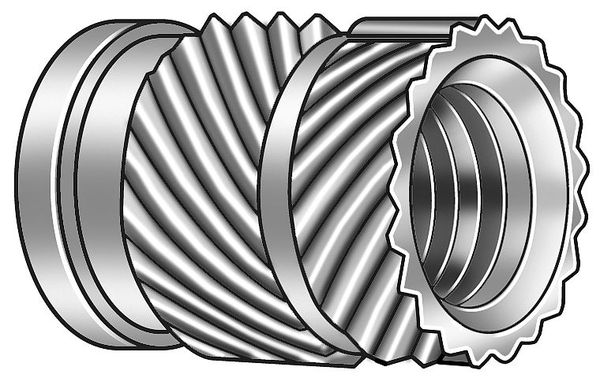

Ultrasonic Insert, #6-32, 9/32 in L, 0.189 in Insert Dia., 0.189 in Tapered End Dia., Brass, 100 PK

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #6-32, 9/32 in L, 0.189 in Insert Dia., 0.189 in Tapered End Dia., Brass, 100 PK

Designed for professional use, this CONTRACTOR SELECT Heat-Set Inserts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 9/32 in
• Manufacturer Part Number: HI-006-WH-PK100
• UPC: 00839137005875

Product information

• Manufacturer Part Number: HI-006-WH-PK100
• UPC: 00839137005875
• Country of Origin: Taiwan, Province of China

Dimensions

• Tapered End Diameter: 0.189 in
• Maximum Hole Diameter: 0.189 in
• Thread Size: #6-32
• Insert Diameter: 0.189 in
• Overall Length: 9/32 in
• Minimum Material Thickness: 5/64 in
• Drill Bit Size: #12

Details

• Series: E-Z Sonic
• Insert Type: Heat-Set Insert
• Features: Pull-Out Resistance
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Straight
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Finish: Plain

This Heat-Set Inserts is chosen for predictable fit and professional handling.

Recommended for field service tasks and on-site replacement and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
