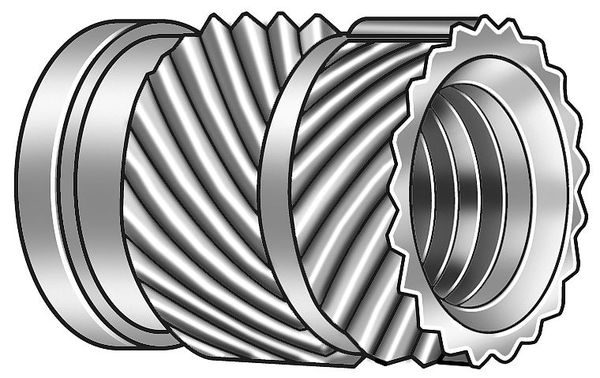

Ultrasonic Insert, #8-32, 21/64 in L, 0.248 in Insert Dia., 0.218 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #8-32, 21/64 in L, 0.248 in Insert Dia., 0.218 in Tapered End Dia., Brass

A practical Heat-Set Inserts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 21/64 in
• Manufacturer Part Number: HI-008-WH-PK1000
• UPC: -

Product information

• Manufacturer Part Number: HI-008-WH-PK1000
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Thread Size: #8-32
• Insert Diameter: 0.248 in
• Overall Length: 21/64 in
• Minimum Material Thickness: 5/64 in
• Drill Bit Size: 0.22 in
• Tapered End Diameter: 0.218 in
• Maximum Hole Diameter: 0.22 in

Details

• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Series: E-Z Sonic
• Finish: Plain
• Insert Type: Heat-Set Insert
• Features: Pull-Out Resistance
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Straight
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver

This Heat-Set Inserts is designed to support reliable operation in demanding environments.

Recommended for facility operations and routine servicing and a practical option for maintenance teams and procurement.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
