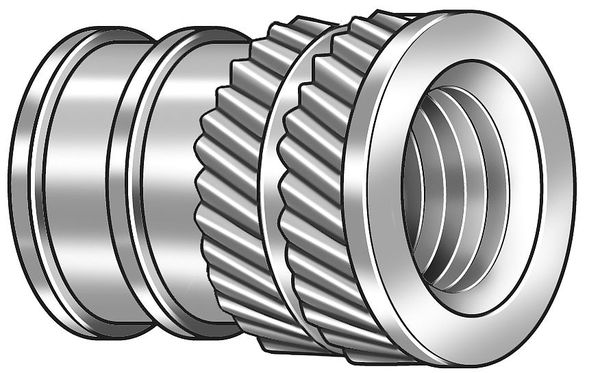

Ultrasonic Insert, M2.5-0.40, 7/32 in L, 0.172 in Insert Dia., 0.144 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, M2.5-0.40, 7/32 in L, 0.172 in Insert Dia., 0.144 in Tapered End Dia., Brass

Designed for professional use, this CONTRACTOR SELECT Heat-Set Inserts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Metric
• Overall Length: 7/32 in
• Manufacturer Part Number: DV-M25-TH-PK1000
• UPC: -

Product information

• Manufacturer Part Number: DV-M25-TH-PK1000
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Minimum Material Thickness: 2-23/64 mm
• Drill Bit Size: 0.141 in
• Tapered End Diameter: 0.144 in
• Maximum Hole Diameter: 4.0386 mm
• Thread Size: M2.5-0.40
• Insert Diameter: 0.172 in
• Overall Length: 7/32 in

Details

• Thread Pitch: 0.45 mm
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 2
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Metric
• Thread Direction: Right Hand
• Series: E-Z Sonic
• Finish: Plain
• Features: Pull-Out Resistance
• Insert Type: Heat-Set Insert

This Heat-Set Inserts is designed to support reliable operation in demanding environments.

Recommended for production support and bench work and designed to support reliable operation in demanding environments.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
