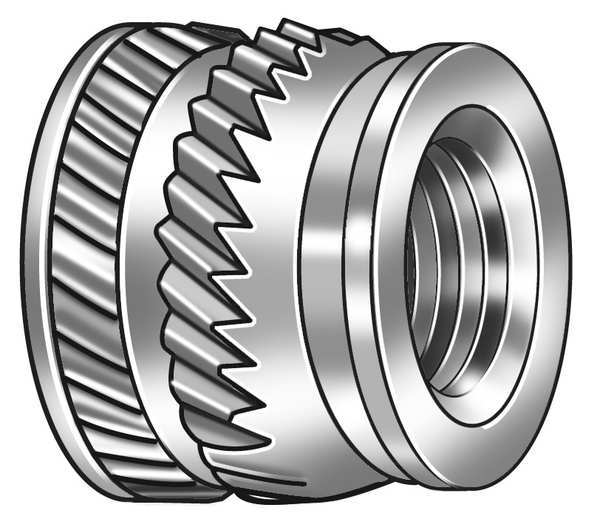

Ultrasonic Insert, M3-0.50, 5/32 in L, 0.22 in Insert Dia., 0.203 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, M3-0.50, 5/32 in L, 0.22 in Insert Dia., 0.203 in Tapered End Dia., Brass

Designed for professional use, this CONTRACTOR SELECT Heat-Set Inserts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Metric
• Overall Length: 5/32 in
• Manufacturer Part Number: TH-M30-SV-PK1000
• UPC: -

Product information

• UPC: -
• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: TH-M30-SV-PK1000

Dimensions

• Drill Bit Size: 0.199 in
• Minimum Material Thickness: 2-61/64 mm
• Tapered End Diameter: 0.203 in
• Maximum Hole Diameter: 5.2324 mm
• Thread Size: M3-0.50
• Insert Diameter: 0.22 in
• Overall Length: 5/32 in

Details

• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Metric
• Thread Direction: Right Hand
• Series: E-Z Sonic
• Thread Pitch: 0.5 mm
• Insert Type: Heat-Set Insert
• Features: Pull-Out Resistance
• Finish: Plain
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1
• Thread Type: UNC

This Heat-Set Inserts is intended for professional buyers focused on durability and uptime.

Recommended for field service tasks and on-site replacement and intended for professional buyers focused on durability and uptime.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
