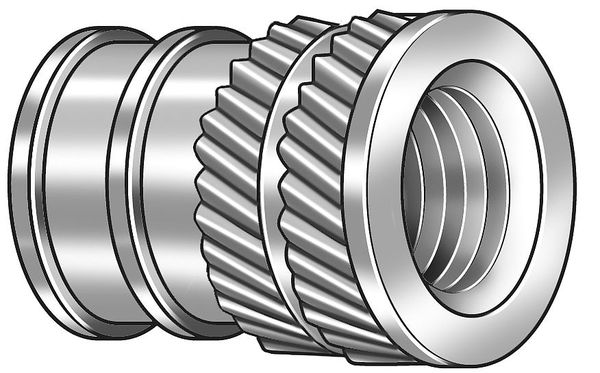

Ultrasonic Insert, M4-0.70, 5/16 in L, 0.234 in Insert Dia., 0.208 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, M4-0.70, 5/16 in L, 0.234 in Insert Dia., 0.208 in Tapered End Dia., Brass

Designed for professional use, this CONTRACTOR SELECT Heat-Set Inserts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Metric
• Overall Length: 5/16 in
• Manufacturer Part Number: DV-M40-TH-PK100
• UPC: 00839137006926

Product information

• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: DV-M40-TH-PK100
• UPC: 00839137006926

Dimensions

• Thread Size: M4-0.70
• Insert Diameter: 0.234 in
• Overall Length: 5/16 in
• Drill Bit Size: 0.208 in
• Minimum Material Thickness: 3-3/8 mm
• Tapered End Diameter: 0.208 in
• Maximum Hole Diameter: 5.9436 mm

Details

• Insert Type: Heat-Set Insert
• Series: E-Z Sonic
• Features: Pull-Out Resistance
• Thread Pitch: 0.7 mm
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 2
• Thread Type: Metric
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Metric
• Thread Direction: Right Hand
• Finish: Plain

This Heat-Set Inserts is selected for dependable day-to-day use.

Recommended for field service tasks and on-site replacement and chosen for predictable fit and professional handling.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
