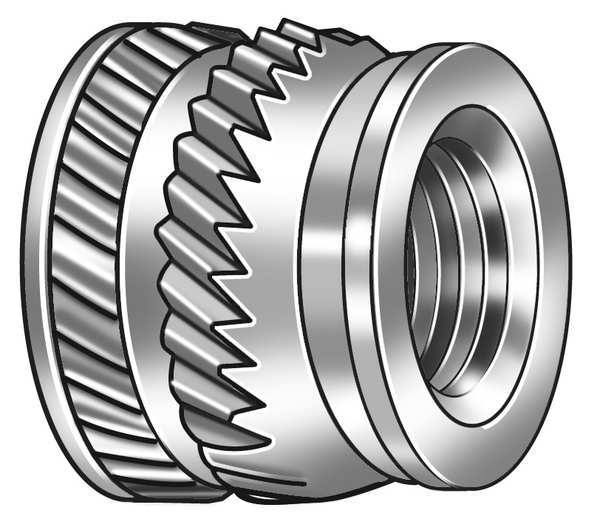

Ultrasonic Insert, M5-0.80, 17/64 in L, 0.328 in Insert Dia., 0.308 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, M5-0.80, 17/64 in L, 0.328 in Insert Dia., 0.308 in Tapered End Dia., Brass

Designed for professional use, this CONTRACTOR SELECT Heat-Set Inserts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Metric
• Overall Length: 17/64 in
• Manufacturer Part Number: TH-M50-SV-PK500
• UPC: -

Product information

• Manufacturer Part Number: TH-M50-SV-PK500
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Thread Size: M5-0.80
• Insert Diameter: 0.328 in
• Overall Length: 17/64 in
• Drill Bit Size: 0.303 in
• Minimum Material Thickness: 4 11/32 mm
• Tapered End Diameter: 0.308 in
• Maximum Hole Diameter: 8.001 mm

Details

• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Metric
• Thread Direction: Right Hand
• Features: Pull-Out Resistance
• Thread Pitch: 0.8 mm
• Insert Type: Heat-Set Insert
• Series: E-Z Sonic
• Finish: Plain
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1
• Thread Type: UNC

This Heat-Set Inserts is designed to support reliable operation in demanding environments.

Recommended for production support and bench work and selected for dependable day-to-day use.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
