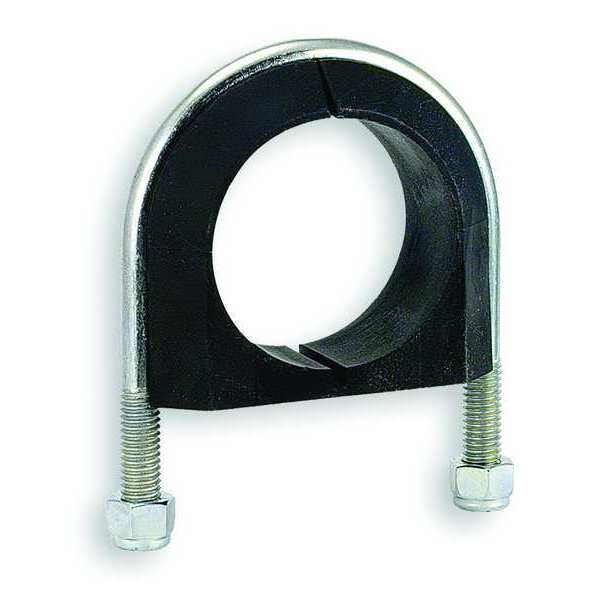

Vibration-Dampening U-Bolt, 3/8"-16, 3 23/64 in Inside Ht, 2 3/16 in Inside Wd/Dia, Steel

ZSI — U-Bolts — Vibration-Dampening U-Bolt, 3/8"-16, 3 23/64 in Inside Ht, 2 3/16 in Inside Wd/Dia, Steel

Designed for professional use, this ZSI U-Bolts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Steel
• Finish: Zinc Plated
• System of Measurement: Inch
• Overall Length: 3-11/16"
• Manufacturer Part Number: UB2PA
• UPC: -

Product information

• Country of Origin: United States
• Manufacturer Part Number: UB2PA
• UPC: -

Dimensions

• Width Across Centers of Tips: 2-9/16 in
• Overall Length: 3-11/16"
• Length (In.): 3 11/16 in
• Inside Length: 3 23/64 in
• Inside Width: 2 3/16 in
• Pipe Size (In.): 2 in
• Width (In.): 2 3/16 in
• Thread Size: 3/8"-16
• Inside Height: 3 23/64 in
• Inside Width/Diameter: 2 3/16 in
• For Pipe Size: 2 in
• Thread Length: 1-13/64 in

Details

• CAD Available: Yes
• Item: Vibration-Dampening U-Bolt
• System of Measurement: Inch
• Material: Steel
• Finish: Zinc Plated
• Number of Nuts Included: 2
• Max. Load (Lb.): 1,220
• Includes: Cushion, Two Nylon Lock Nuts, U-Bolt
• Characteristics: Cushion Design Provides Total Load Distribution
• Type: Vibration-Damping U-Bolt
• Thread Fit: 2B
• Minimum Temperature: -50 Degrees F
• Pack Size: Small Pack
• Thread Type: Coarse
• Globally Sourced: Made in USA*
• Working Load Limit: 1,220 lb
• Maximum Temperature: 275 Degrees F
• Manufacturer Location: Made in USA*
• Drive Type: No Drive
• Dimensional Standards: UNC-2B
• Material Quality Standards: MIL-S-901D

This U-Bolts is designed to support reliable operation in demanding environments.

Recommended for maintenance and repair workflows and a practical option for maintenance teams and procurement.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
